Docker execution mode#

The docker approach assumes you previously created Docker image, which contains all the dbt pipelines and a profiles.yml that you manage.

Performance and maintenance considerations#

You can have better environment isolation with docker than when using local or virtualenv modes, but this mode also requires more maintenance and has some performance tradeoffs, depending on your project configurations.

Using docker requires that you ensure the Docker container you use has up-to-date files and you might potentially need to manage secrets in multiple places. Another challenge of working with docker occurs when the Airflow worker is already running in Docker, which can cause problems related to running Docker in Docker.

Also, the Docker execution mode approach can be significantly slower than virtualenv, since it might require building the Docker container before executing dbt commands, which is slower than creating a Virtualenv with dbt-core.

Finally, if you run Airflow in a container - such as in an Astro deployment - you may encounter challenges when attempting to use Cosmos ExecutionMode.DOCKER. Unless you have a strong reason to pursue this setup, we generally advise against running a container inside another container, as discussed in the article Do not use Docker-in-Docker for CI.

Set up Docker execution mode#

The following procedure illustrates how to run the Cosmos dbt Docker Operators and the required setup for them.

Requirements#

The following example setup steps include setting up the following:

  • Airflow

  • Astronomer-cosmos package containing the dbt Docker operators

  • Postgres Docker container

  • Docker image built with required dbt project and dbt DAG

  • dbt DAG with dbt Docker operators in the Airflow DAGs directory to run in Airflow

1. Install Airflow and Cosmos#

Create a python virtualenv, activate it, upgrade pip to the latest version, and install Apache Airflow® & astronomer-postgres:

python -m venv venv
source venv/bin/activate
pip install --upgrade pip
pip install apache-airflow
pip install "astronomer-cosmos[dbt-postgres]"

2. Set up Postgres database#

You will need a PostgreSQL database running to use as the database for the dbt project. Run the following command to run and expose a postgres database:

docker run --name some-postgres -e POSTGRES_PASSWORD="<postgres_password>" -e POSTGRES_USER=postgres -e POSTGRES_DB=postgres -p5432:5432 -d postgres

3. Build the dbt Docker image#

For the Docker operators to work, you need to create a Docker image that will be supplied as image parameter to the dbt Docker operators used in the DAG.

  1. Clone the cosmos-example repo

git clone https://github.com/astronomer/cosmos-example.git
cd cosmos-example

  1. Create a Docker image containing the dbt project files and dbt profile by using the Dockerfile, which will be supplied to the Docker operators.

docker build -t dbt-jaffle-shop:1.0.0 -f Dockerfile.postgres_profile_docker_k8s .

Note

If running on M1, you may need to set the following environment variables for running the Docker build command, in case it fails.

export DOCKER_BUILDKIT=0
export COMPOSE_DOCKER_CLI_BUILD=0
export DOCKER_DEFAULT_PLATFORM=linux/amd64

Read the following example Dockerfiles to understand what it does so that you can use them as a project reference.

  • The dbt profile file is added to the image.

  • The dags directory containing the dbt project jaffle_shop is added to the image.

  • The dbt_project.yml is replaced with postgres_profile_dbt_project.yml, which contains the profile key pointing to postgres_profile because profile creation is not handled for K8s operators, like in local mode.

4. Set up and trigger the Dag with Airflow#

  1. Copy the dags directory from the cosmos-example repo to your Airflow home

cp -r dags $AIRFLOW_HOME/

This directory contains a Docker-specific example Dag.

  1. Run Airflow

airflow standalone

Note

You might need to run airflow standalone with sudo if your Airflow user is not able to access the Docker socket URL or pull the images in the Kind cluster.

  1. Log in to Airflow through a web browser, http://localhost:8080/, using the user airflow and the password described in the standalone_admin_password.txt file.

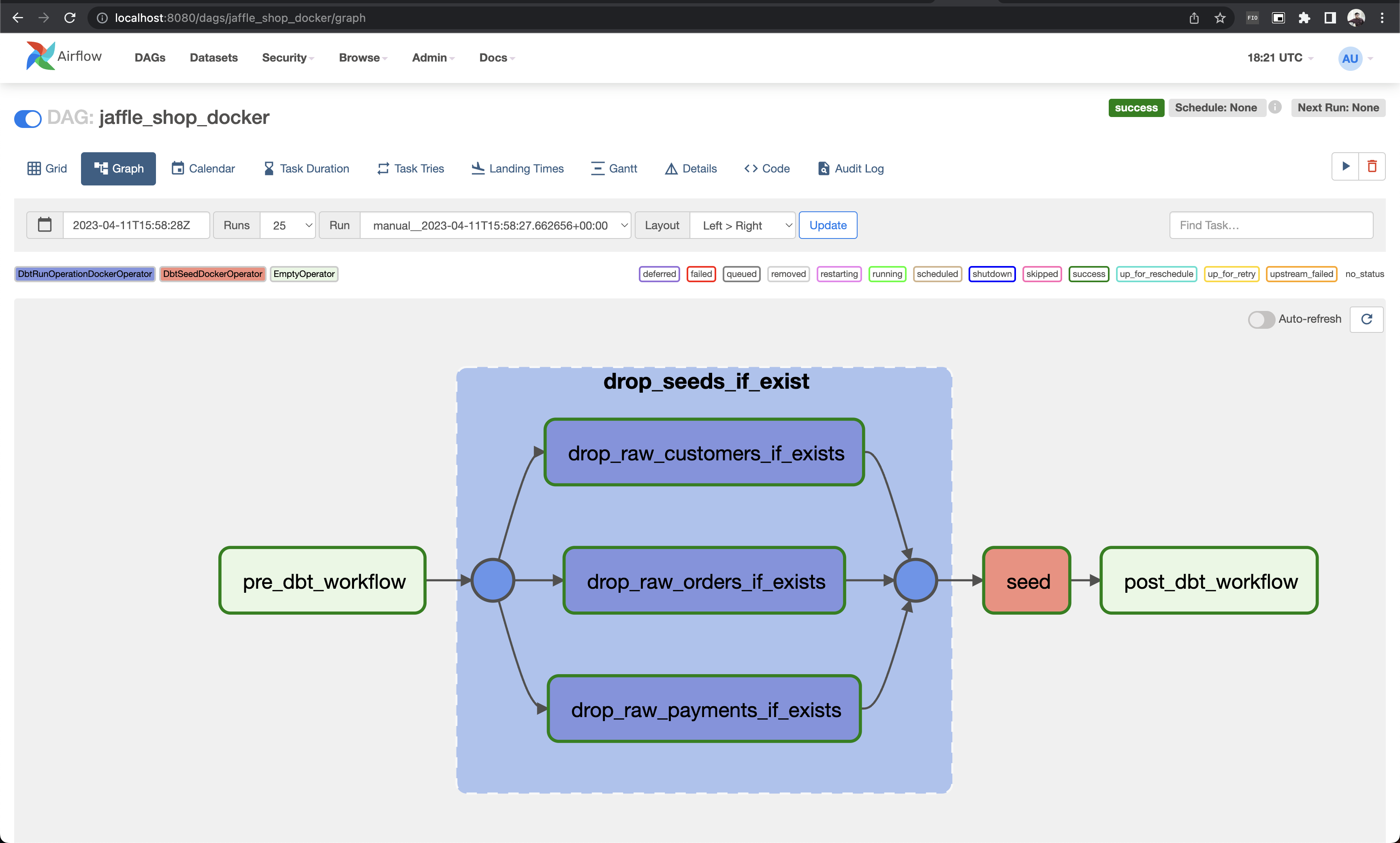

  2. Enable and trigger a run of the jaffle_shop_docker Dag. You can see the following successful Dag run example:

https://github.com/astronomer/astronomer-cosmos/raw/main/docs/_static/jaffle_shop_docker_dag_run.png

Specifying ProfileConfig#

Starting with Cosmos 1.8.0, you can use the profile_config argument in your Dbt DAG Docker operators to reference profiles for your dbt project defined in a profiles.yml file. To do so, provide the file’s path via the profiles_yml_path parameter in profile_config.

Note that in ExecutionMode.DOCKER, the profile_config is only compatible with the profiles_yml_path approach. The profile_mapping method will not work because the required Airflow connections cannot be accessed within the Docker container to map them to the dbt profile.

Troubleshooting#

If dbt is unavailable in the Airflow scheduler, the default LoadMode.DBT_LS will not work. In this scenario, you must use a Parsing Methods that does not rely on dbt, such as LoadMode.MANIFEST.
